हाई करंट स्लिप रिंग
>
|
| उत्पत्ति के प्लेस | चीन |
| ब्रांड नाम | CENO |
| प्रमाणन | CE,RoHS,UL,ISO9001 |
| मॉडल संख्या | बीएचसीएन-सी-07260-0360-02पी3-12एस |

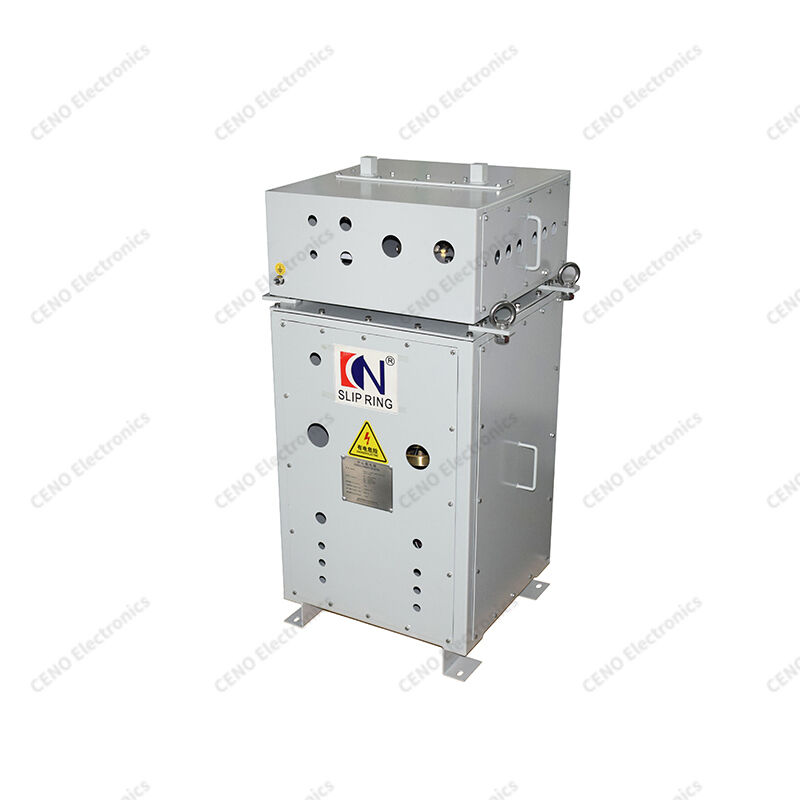

High-Power Slip Ring with Rugged Sealed Cabinet Design for Continuous Rotation
BHCN-C-07260-0360-02P3-12S is CENO Industrial High-Power Slip Ring (Central Collector) with a robust, cabinet-style electrical rotary joint designed for heavy-duty continuous rotation applications. It enables reliable transmission of high-current power and multi-channel control/communication signals, eliminating cable twist and tangling. Built with a sealed, split enclosure, it delivers exceptional protection against dust, moisture, and harsh industrial conditions, making it ideal for ports, wind turbines, metallurgy, and construction machinery.
Features
u High-Current Capacity
u Rugged Enclosure
u Long Service Life
u Easy Installation
u Safety Compliant
u Flexible Configuration
Applications
u Port Cranes
u Wind Turbines
u Metallurgy & Mining
u Construction Machinery
u Other Industrial Systems
Optional
u Protection Upgrade
u Signal Expansion
u Environmental Control
u Condition Monitoring
u Corrosion Resistance
u Mechanical Customization
Specification
|
BHCN-C-07260-0360-02P3-12S |
Specification |
|
Protection Rating |
IP54 |
|
Operating Humidity |
<90% (35°C) |
|
Operating Temperature |
-10°C ~ +45°C |
|
Speed |
0～1 rpm |
|
|
|
|
Voltage |
0~380V AC/DC |
|
Current |
6x260A + 1xPE(260A) + 3x60A |
|
Dielectric Strength |
≥1500V AC @ 50Hz |
|
Insulation Resistance |
500MΩ @ 500V DC |
|
Contact Resistance Fluctuation |
≤10mΩ (at 50 rpm) |
|
Contact Material |
Copper graphite |
|
Wiring |
Screw terminals |
|
Maintenance |
Periodic |
|
|
|
|
Voltage |
0~230V AC/DC |
|
Current |
2x16A + 12 signal |
|
Dielectric Strength |
>500V AC @ 50Hz |
|
Insulation Resistance |
500MΩ @ 500V DC |
|
Contact Resistance Fluctuation |
≤30mΩ (at 50 rpm) |
|
Contact Material |
Precious metal |
|
Wiring |
Junction box |
|
Maintenance |
Maintenance-free |
|
|
|
|
Rotation Type |
Ring rotates, brushes stationary |
|
Mounting |
Bolted at both rotor and stator ends |
|
Housing Material |
Q235 steel |
|
Other |
200W heater (220V) + thermostat |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
