वाटरप्रूफ स्लिप रिंग
>
|
|
| उत्पत्ति के प्लेस | चीन |
| ब्रांड नाम | CENO |
| प्रमाणन | CE,RoHS,ISO9001,UL |
| मॉडल संख्या | ECN000-12P4-11S-IP65 |

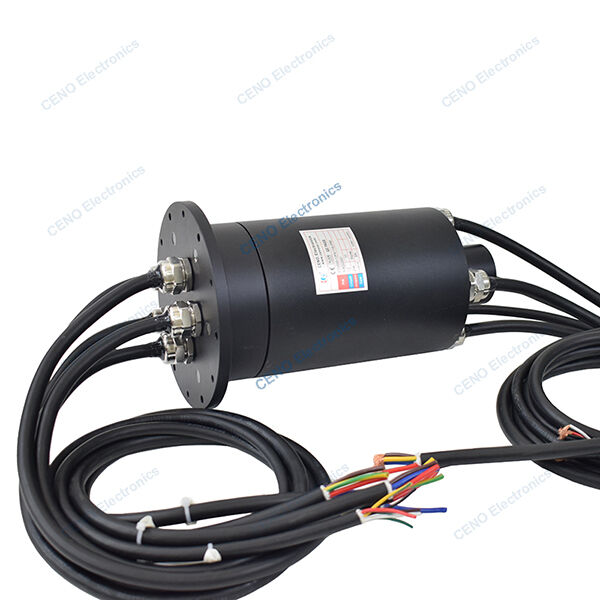

Water-proof Slip Ring with IP65 optional & Electric Power and PT100 Signal
ECN000-12P4-11S-IP65 is CENO Water-proof Slip Ring with IP65 and circuits Electric Power and PT Signal. The operating principle of a waterproof slip ring primarily centers on its internal structure and design, enabling it to reliably transmit power and signals within harsh environments, including those that are wet, corrosive, or submerged underwater. A waterproof conductive slip ring is a specially designed rotary connector utilized for the transmission of power and signals during rotational movement.
Specification
| ECN000-12P4-11S-IP65 Specification | |
| Current & Circuits | 12 * 25A; 2 * PT100 Signal; 5 * Signal |
| Rating Voltage | 0 ~ 400 VAC/VDC |
| Dielectric strength | ≥1200VAC@50Hz(P); ≥300VAC@50Hz(S) |
| Isolation resistance | ≥500MΩ@500VDC(P); ≥100MΩ@300VDC(S) |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP65 |
| Operating speed | 0~35rpm |
| Outer diameter | Ø130mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | As customized |
Features
1 Protection be to IP65 IP66 IP67 IP68
2 Circuits 1 - 300 circuits are option
3 Be able to bear high voltage / high pressure, and anti-corrosion
4 Integrated structure, easy to install
Applications
1 Automatic machine
2 Port Machinery
3 Drilling platform
4 Humid / wet / cold environment
Optional
1 Circuit, Voltage, Current
2 Signals and data
3 Contact / Housing Materials
4 Protection grade
5 Working speed & temperature
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
